ORCA-spark デジタルCMOSカメラ
C11440-36U
ORCA-sparkは、230万画素のCMOSセンサを採用した高解像度・高感度デジタルCMOSカメラです。6.6 electronsの低読み出しノイズを実現し、暗い対象物でもS/Nの良い撮影が可能です。また、グローバルシャッタの採用と約65 フレーム/秒の高速読み出しにより、移動物体の撮影にも適しています。
ORCAは、浜松ホトニクス株式会社の登録商標です。
| 型名 | C11440-36U |
|---|---|
| 撮像素子 | CMOSイメージセンサ |
| 有効画素数 | 1920(H)×1200(V) |
| 画素サイズ | 5.86 μm(H)×5.86 μm(V) |
| 有効素子サイズ | 11.25 mm(H)×7.03 mm(V) |
| 飽和電荷量 | 33 000 electrons (typ.) |
| 読み出し速度 | 64.9 フレーム/秒 （全画素読み出し） 2008.9 フレーム/秒 （2ラインサブアレイ） |
| 読み出しノイズ | 6.6 electrons (rms) (typ.) |
| 露光時間 | 26.17 μs～10 s （内部同期モード: エッジトリガ、 スタートトリガ） 1 ms～1 s （外部トリガモード： レベルトリガ、読み出し同期トリガ） |
| ダイナミックレンジ | 5000:1 （typ.）*1 |
| アナログゲイン | １倍～15.8倍 (２4０段階) |
| サブアレイ読み出し | 可能 |
| ビニング読み出し | 2×2 *2 |
| 外部トリガモード | エッジトリガ、レベルトリガ、読み出し同期トリガ、スタートトリガ |
| 外部トリガ入力 | 可能 |
| 入力コネクタ | SMA |
| トリガ遅延機能 | 0 μs ～ 10 s (1 μs ステップ) |
| トリガ出力 | プログラマブルタイミング出力、ロー出力、ハイ出力、グローバル露光タイミング出力、 トリガレディ出力 |
| 出力コネクタ | SMA × 1 |
| インターフェース | USB 3.0*3 |
| コネクタ仕様 | USB 3.0 microB type |
| A/Dコンバータ | 12 bit |
| レンズマウント | Cマウント |
| 電源 | AC100 V ～ AC240 V、50 Hz/60 Hz |
| 消費電力 | 約20 VA |
| 動作周囲温度 | 0 ℃～+40 ℃ |
| 保存周囲温度 | -10 ℃～+50 ℃ |
| 動作周囲湿度 | 30 %～80 % (強制空冷時、結露しないこと) |
| 保存周囲湿度 | 90 % 以下 (結露しないこと) |
*1 飽和電荷量と読み出しノイズから算出。
*2 カメラ内でデジタル処理 (デジタルビニング) しています。
*3 USB 3.1 Gen 1 と同等です。

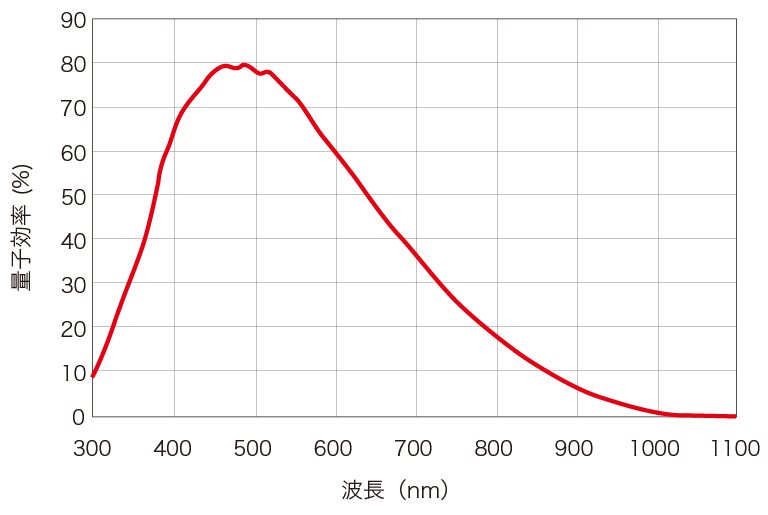

分光感度特性

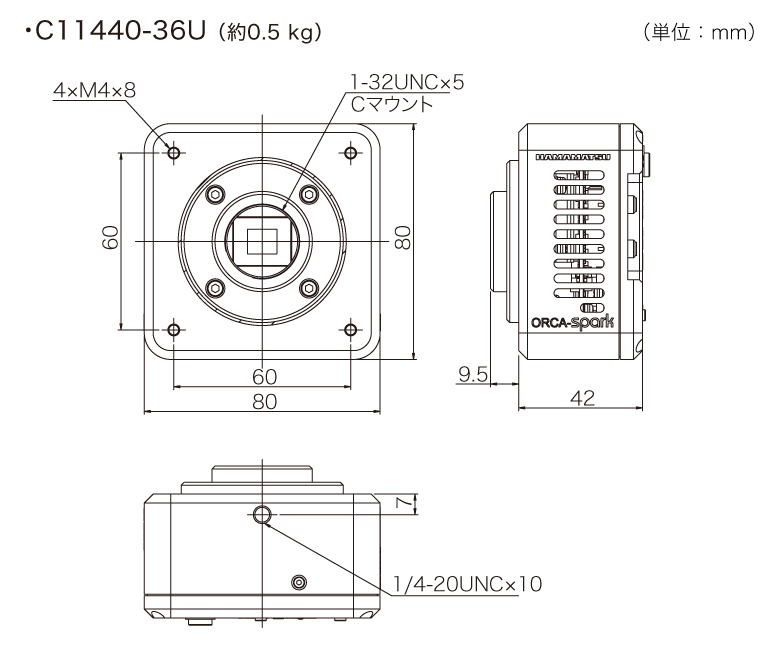

外形寸法図
