ORCA-Fusion デジタルCMOSカメラ
C14440-20UP
微弱光領域（フォトン数が少ない領域）の観察においては、画像のS/N のさらなる改善が最大の課題となっています。QEの向上は大切なアプローチでは有りますが、それ以外にS/Nを改善する方法はないのでしょうか？
浜松ホトニクスでは読み出しノイズの低減に着目し、微弱光領域においても高いS/N が得られるセンサを弊社独自に開発しました。科学計測用カメラのフロントランナーとして、ユニークな視点で新時代を切り開きます。低ノイズ・高画質 第3 世代Gen Ⅲ sCMOS カメラORCA-Fusion の誕生です。
特長
- 低読み出しノイズ: 0.7 electrons rms
- 高画質: DSNU 0.06 electrons / PRNU 0.06 %（7500 electron 時)
- 高速読み出し: 89.1フレーム (2304×2304) / 100 フレーム/ 秒 (2304×2048)
- 広視野: 2304×2304 画素（5.3 M 画素） 対角21.176 mm の広視野センサ
- 高解像度: ピクセルサイズ 6.5 μm
- 紫外や近赤外における 高い量子効率

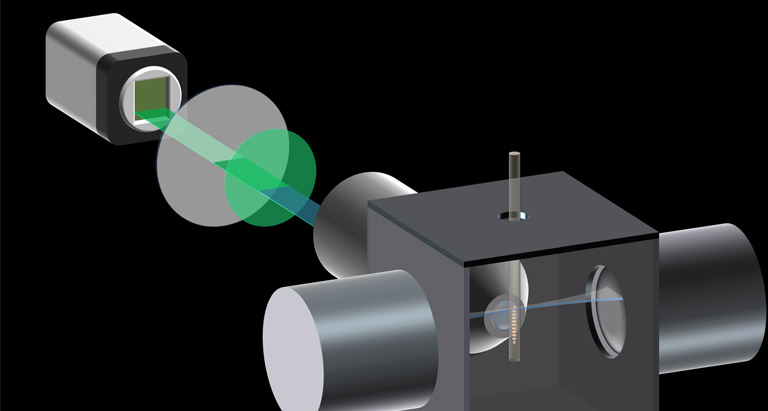

ライトシート読み出しモード【特許登録済み】
ライトシート読み出しモードは、ライトシート顕微鏡画像のS/Nを改善するsCMOSカメラの読み出し方法です。
ライトシート読み出しモードの原理や特長について詳しくはこちらをご覧ください。
仕様
| 型名 | C14440-20UP |
|---|---|
| 撮像素子 | 科学計測用CMOSイメージセンサ |
| 有効画素数 | 2304 (H) × 2304 (V) |
| 画素サイズ | 6.5 μm×6.5 μm |
| 有効素子サイズ | 14.976 mm (H) × 14.976 mm (V) |
| 飽和電荷量 | 15 000 electrons（typ.） |
| 読み出し速度 | Fast scan：89.1 フレーム/秒（CoaxPress動作）、31.6 フレーム/（USB 3.0 動作、16 bit） （2304×2304） Fast scan：100 フレーム/秒（CoaxPress動作 / 2304×2048） Standard scan：23.2 フレーム/秒（CoaxPress動作）、23.2 フレーム/秒（USB 3.0 動作） （2304×2304） Ultra quiet scan：5.42 フレーム/秒（CoaxPress動作）、5.42 フレーム/秒（USB 3.0 動作） （2304×2304） |
| 読み出しノイズ | Fast scan：1.4 electrons rms Standard scan：1.0 electrons rms Ultra quiet scan：0.7 electrons rms |
| 露光時間 | Fast scan：17 μs～10 s (4.87 μs step) Standard scan：65 μs～10 s (18.65 μs step) Ultra quiet scan：280 μs～10 s (80.00 μs step) |
| 冷却方式 | ペルチェ冷却 |
| 冷却温度 | 強制空冷（周囲温度+25℃）：-5 ℃ 水冷（水温+25 ℃）：-5 ℃ 水冷（最大冷却）（水温+15 ℃ 周囲環境温度+20 ℃ の時）：-15 ℃ |
| 暗電流 | 0.5 electrons/pixel/s（センサ温度：-5 ℃、周囲温度：+25 ℃）（typ.） 0.5 electrons/pixel/s（センサ温度：-5 ℃、水温：+25 ℃）（typ.） 0.2 electrons/pixel/s（センサ温度：-15 ℃、水温：+20 ℃、周囲環境温度：+20 ℃）（typ.） |
| ダイナミックレンジ | 21 400 : 1 *1（typ.） |
| 外部トリガモード | ノーマルエリアモード時：エッジトリガ/グローバルリセットエッジトリガ/レベルトリガ/ グローバルリセットレベルトリガ/読み出し同期トリガ/スタートトリガ ライトシート読み出しモード時：エッジトリガ/スタートトリガ |
| 入力コネクタ | SMA |
| トリガ遅延機能 | 0μs ～ 10 s（1 μs ステップ） |
| トリガ出力 | グローバル露光タイミング出力/トリガレディ出力/プログラマブルタイミング出力/ High固定/Low固定 |
| 出力コネクタ | SMA |
| 画像改善機能 | 欠陥画素補正（ON-OFF可能、白点補正3段階選択可） |
| インターフェース | CoaXPress (Dual CXP-6)/USB 3.0 *2 |
| A/Dコンバータ | 16 bit、12 bit、8 bit |
| レンズマウント | Cマウント |
| 電源 | AC 100 V ～ AC 240 V 50 Hz/60 Hz |
| 消費電力 | 約 150 VA *3 |
| 動作周囲温度 | 0 ℃ ～ + 40 ℃ |
| 保存周囲温度 | －10 ℃ ～ + 50 ℃ |
| 動作周囲湿度 | 30 % ～ 80 %（結露しないこと） |
| 保存周囲湿度 | 90 %以下（結露しないこと） |
*1 飽和電荷量とUltra quiet scan時の読み出しノイズから算出
*2 USB 3.1 Gen Ⅰと同等
*3 AC240 V 入力時の値。AC100 V 入力時は約70 VA

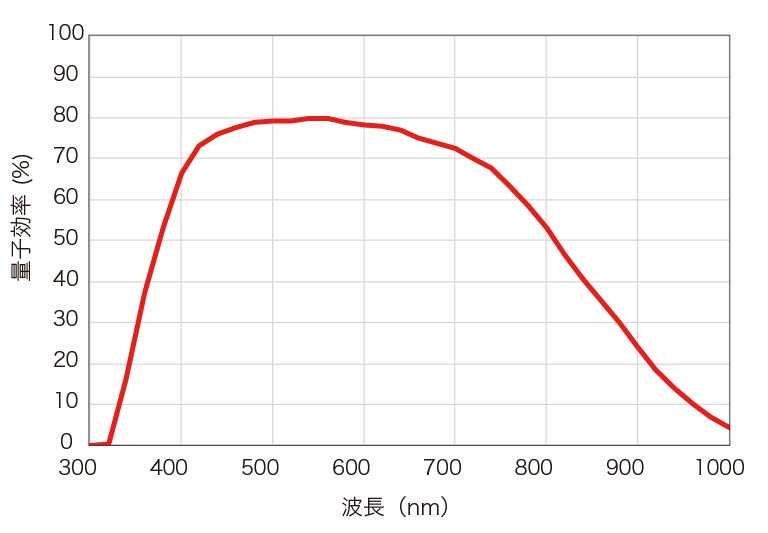

分光感度特性

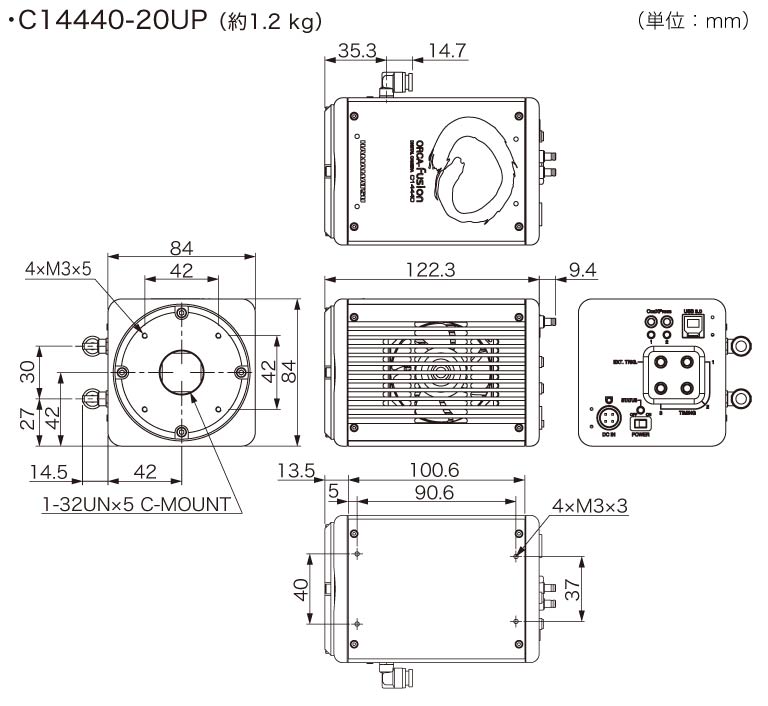

外形寸法図
