Scientific CMOS board level camera

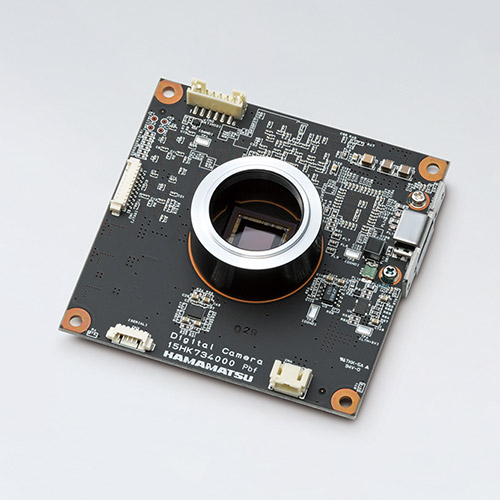

The C11440-52U30 is a compact and highly sensitive board level camera with a scientific CMOS sensor. The camera has over 80 % quantum efficiency. The camera runs at 30 frames/s at full resolution and it can reach up to 25 655 frames/s (512 × 8 ROI). This enhanced QE means that you have a possibility of detecting the faintest of signals. Or, for moderately dim samples, that the ideal image is achievable with shorter exposure times.

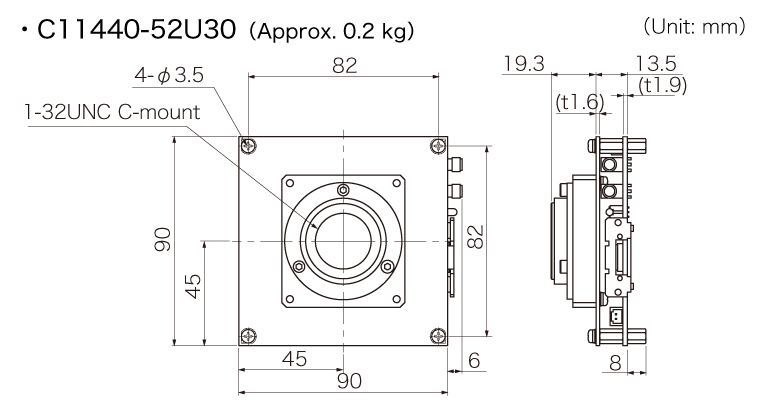

The C11440-52U30 has low camera noise of 2.3 electrons (rms) at 30 frames/s. The compact (90 mm × 90 mm) and light weight design is idea for integration into various measurement and analytical instruments. In addition to that the camera employs a USB 3.0 digital interface for convenience and compatibility.


  • Resolution: 4.0 megapixels
  • Readout noise: 2.3 electrons (rms), 1.6 electrons (median)
  • Frame rate: 30 frames/s (2048 × 2048)
  • Quantum efficiency: 82 % (Peak QE)


  • DNA sequence
  • Gene expression
  • Imaging cytometry
  • High content screening
  • Live cell imaging
  • Genomic and proteomic analysis and diagnostics
  • X-ray I.I., X-ray scintillator readout


Type number C11440-52U30
Imaging device Scientific CMOS image sensor
Effective no. of pixels 2048 (H)×2048 (V)
Effective area 13.312 mm (H)×13.312 mm (V)
Full well capacity 30 000 electrons (typ.)
Readout speed 30 frames/s (Full resolution) to 25 655 frames/s (512×8 ROI)
Readout noise 2.3 electrons (rms) typ., 1.6 electrons (median)typ. *2
Exposure time 1 ms to 30 s (Internal trigger mode, Full resolution)*3
Dynamic range 18 000:1 typ.*1
Sub-array Yes
Binning 2×2, 4×4*4
External trigger mode Edge trigger, Level trigger, Synchronous readout trigger, Start trigger, Global reset edge trigger, Global reset level trigger
Trigger output 3 programmable timing outputs, Low output, High output, Trigger ready output, Global exposure timing output
Interface USB 3.0
Connector USB 3.0 microB type
A/D converter 16 bit
Lens mount C-mount
Power supply DC+12 V
Power consumption Approx. 9 W
Ambient operating temperature 0 ℃ to +40 ℃ *5
Ambient storage temperature -10 ℃ to +50 ℃
Ambient operating humidity 30% to 80 % (with no condensation)
Ambient storage humidity 90 % max. (with no condensation)
*1 Calculated from the ratio of the full well capacity and the average readout noise.
*2 Including dark current at 33 ms exposure.
*3 When exposure time is longer than 100 ms, white spots would be visible and image quality would be degraded.
*4 Digital binning processing in the camera
*5 When ambient operating temperature is higher than + 35 ˚C, white spots would be visible and image quality would be degraded.

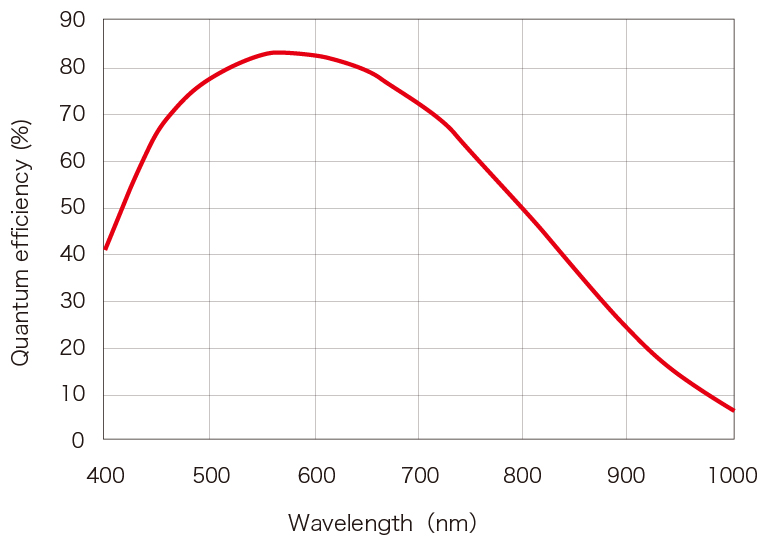

Spectral response
