Digital CMOS board level camera


The core of the C13770-50U camera is the scientific image sensor, an advanced CMOS detector that simultaneously achieves high resolution, fast readout speeds and low noise. With its small size, board-level design and simple, low-cost integration using USB 3.0, the C13770-50U is the ideal camera for OEM scientific imaging.
It is available to offer customization following your request. Please contact us for details.


  • Resolution: 5.0 megapixels (2464 × 2056)
  • Readout noise: 2.3 electrons (typ.)
  • Frame rate: 40 frames/s (Full resolution)
  • Global shutter


  • Fluorescence imaging
  • DNA sequencing
  • CTC detection
  • X-ray I.I. readout
  • X-ray CT


Our software provides the interface to access all of our carefully engineered camera features, from simply setting exposure to orchestrating complex triggering for multidimensional experiments.


Type number C13770-50U
Imaging device CMOS image sensor
Effective no. of pixels 2464 (H) × 2056 (V)
Cell size 3.45 μm (H) × 3.45 μm (V)
Effective area 8.50 mm (H) × 7.09 mm (V)
Full well capacity 10 500 electrons (typ.)
Readout speed 40 frames/s (Full resolution)
134 frames/s (2×2 Binning)
3406 frames/s (2×2 Binning, 4 Line Sub-array)
Readout noise 2.3 electrons (rms) typ. (Analog gain 1×)
Exposure time 20.71 μs to 1 s (Internal trigger mode)
20.71 μs to 1 s (External trigger mode: Edge trigger, Start trigger)
1 ms to 1 s (External trigger mode: Level trigger, Synchronous readout trigger)
Dynamic range 4565 : 1 typ.*1
Analog gain 1× to 15.8× (240 steps)
Sub-array Yes
Binning 2 × 2 *2
External trigger mode Edge trigger, Level trigger Synchronous readout trigger, Start trigger
Trigger delay function 0 s to 10 s in 1 μs steps
Trigger output Programmable timing outputs Trigger ready output Global exposure timing output Low output, High output
Interface USB 3.0
Connector USB 3.0 microB type
A/D converter 12 bit
Lens mount C-mount
Power supply Bus Power/DC+8 V to DC+30 V
Power consumption Approx. 4.5 W
Ambient operating temperature 0 ˚C to + 40 ˚C
Ambient storage temperature - 10 ˚C to + 50 ˚C
Ambient operating humidity 30 % to 80 % (with no condensation)
Ambient storage humidity 90 % max. (with no condensation)
*1: Calculated from the ratio of the full well capacity and the readout noise.
*2: Vertical 2 pixels are added inside the CMOS image sensor, and horizontal 2 pixels are added digitally inside in the camera.

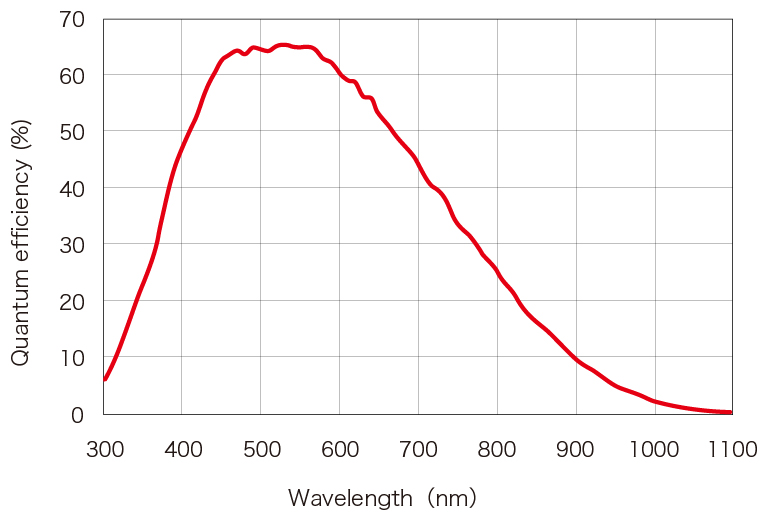

Spectral response
