ORCA-Fusion BT Digital CMOS camera
C15440-20UP
See what you’ve been missing
The ORCA-Fusion BT camera is the pinnacle of scientific CMOS (sCMOS) performance. The specifications are without compromise: ultra-low readout noise, CCD-like uniformity, fast frame rates and back-thinned enabled high QE. But the beauty of the ORCA-Fusion BT is what this combination of exceptional photon detection and collection can do for you. See the dimmest whisper of signal, acquire visually stunning, high S/N images from the fewest photons, capture previously unresolved temporal events and perform computational methods with confidence. The ORCA-Fusion BT is the camera that makes the difficult experiments easy and previously impossible experiments possible.
ORCA-Fusion BT advantages versus other BT CMOS cameras
Exclusive industry leading BT sCMOS performance with trusted Hamamatsu quality and reliability
- Extremely low readout noise
- High QE, across a wide range of wavelengths
- CCD-like uniformity; minimal high readout noise pixels
- High dynamic range
- 3 readout speeds
- Lightsheet readout mode
- 5.3 Megapixels
- Both USB 3.0 and high speed CoaXPress interfaces
ORCA-Fusion BT advantages versus EM-CCD cameras
A practical and functional replacement for expensive EM-CCDs with uncompromising sensitivity, speed and versatility
- Resolution
- Binning versatility
- No amplification or excess noise
- High dynamic range
- Large field of view
Applications
- Wide-field fluorescence microscopy
- Time-lapse imaging
- Spinning disk confocal microscopy
- Lightsheet microscopy
- Super resolution precision localization
- Genetically encoded voltage imaging
- Optogenetics
- Single molecule tracking
- Computational imaging
- Quantum computing
Time-lapse live cell imaging by low light excitation
Sample: H9c2, Objective lens: Apo TIRF 60XC (NA1.49), ND: 8, Interval: 15 sec

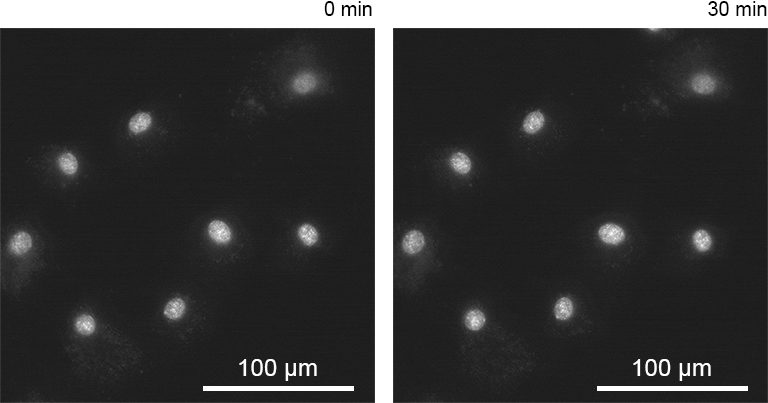

Nucleus
Nucleus:
HCS NuclearMask Stains / Exposure 20 ms

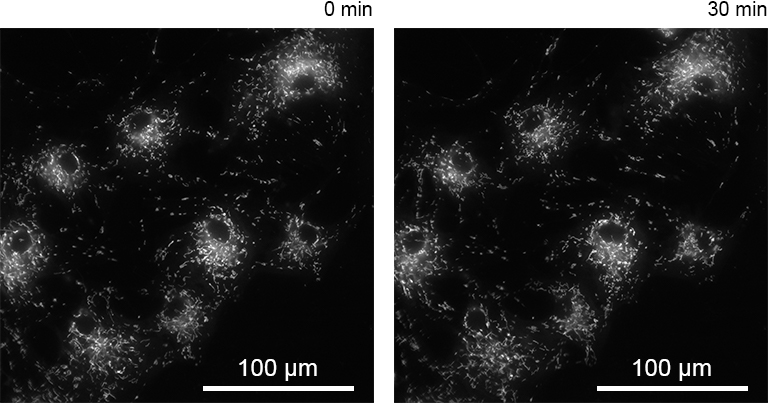

Mitochondria
Mitochondria:
MitoTracker / Exposure 500 ms

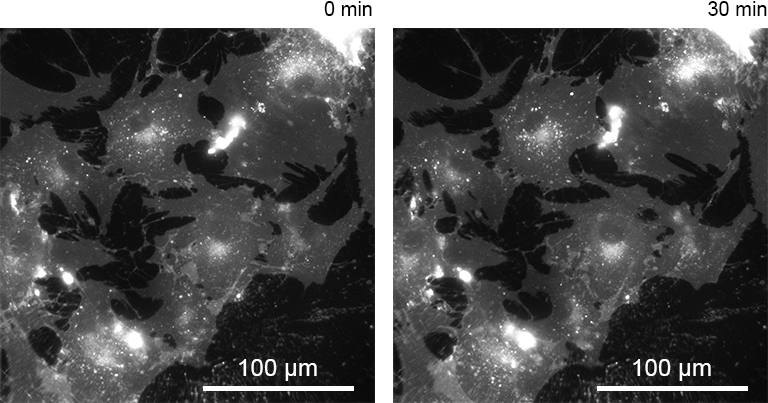

Membrane
Membrane:
CellMask Plasma Membrane stains / Exposure 500 ms

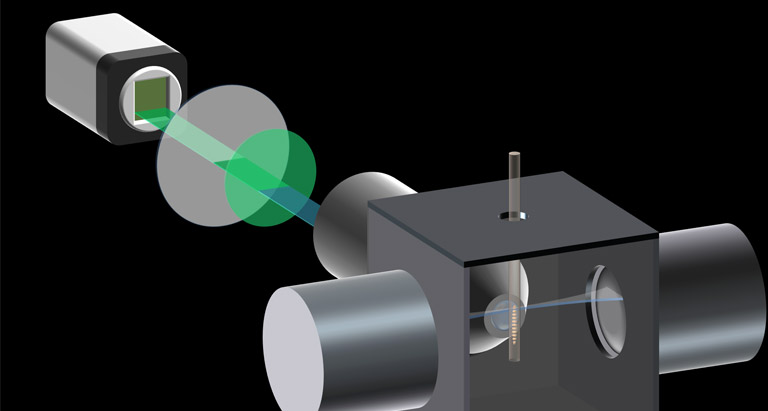

Lightsheet Readout Mode [Patented]
PC recommendation
With the introduction of the ORCA-Fusion BT, users are now able to stream 5 megapixel images to their computers 89 frames per second. The computer recommendations for this high data rate can be met by using the guidelines listed this PC Recommendations for ORCA-Fusion BT.
Specifications
| Product number | C15440-20UP |
|---|---|
| Imaging device | Scientific CMOS image sensor |
| Effective number of pixels | 2304 (H) × 2304 (V) |
| Pixel Size | 6.5 μm × 6.5 μm |
| Effective Area | 14.976 mm (H) × 14.976 mm (V) |
| Full well capacity | 15 000 electrons *1 |
| Readout speed | Fast scan, Full resolution, CoaXPress : 89.1 frames/s Fast scan, Full resolution, USB 3.0 : 31.6 frames/s（16 bit）, 42.2 frames/s（12 bit） , 63.3 frames/s（8 bit） Standard scan, Full resolution, CoaXPress : 23.2 frames/s Standard scan, Full resolution, USB 3.0 : 23.2 frames/s Ultra quiet scan, Full resolution, CoaXPress : 5.42 frames/s Ultra quiet scan, Full resolution, USB 3.0 : 5.42 frames/s |
| Readout noise | Fast scan : 1.6 electrons rms *1 Standard scan : 1.0 electrons rms *1 Ultra-quiet scan: 0.7 electrons rms *1 |
| Exposure times | Fast scan : 17 µs to 10 s Standard scan : 65 µs to 10 s Ultra quiet scan : 280 µs to 10 s |
| Cooling method | Peltier cooling |
| Cooling temperature | Forced-air cooled (Ambient temperature: +25 ˚C) : −8 ˚C Water cooled (Water temperature: +25 ˚C) : −8 ˚C Water cooled (Max cooling (Ambient temperature: +20 ˚C, water temperature: +20 ˚C)) : Less than −15 ˚C |
| Dark current | 1.0 electrons/pixel/s (cooling temperature: -8 ˚C , Ambient temperature: +25 ˚C)*1*3 1.0 electrons/pixel/s (cooling temperature: -8 ˚C , Water temperature: +25 ˚C)*1*3 0.7 electrons/pixel/s (cooling temperature: Less than −15 ˚C , Ambient temperature: +20 ˚C, water temperature: +20 ˚C)*1*3 |
| Dynamic range | 21 400:1 *1*2*4 |
| External trigger mode | Edge, Level, Sync readout, Start, Global reset edge, Global reset level, Programmable |
| External trigger signal routing | SMA |
| External trigger delay function | 0 μs to 10 s (1 μs step) |
| Trigger output | Global exposure timing, Trigger ready, Low, High, 3 programmable timing outputs |
| External signal output routing | SMA |
| Interface | CoaXPress (Dual CXP-6) and USB 3.0 Super Speed *5 |
| A/D converter | 16 bit, 12 bit, 8 bit |
| Lens mount | C-mount (standard), F-mount (C15440-20UP01) |
| Power supply | AC 100 V to AC 240 V, 50 Hz/60 Hz |
| Power consumption | Approx. 155 VA |
| Ambient operating temperature | 0 °C to +40 °C |
| Ambient storage temperature | -10 ℃ to +50 ℃ |
| Ambient operating humidity | 30 % to 80 % (With no condensation) |
| Ambient storage humidity | 90 % or less (With no condensation) |
*1 Typical value
*2 Calculated from the ratio of the full well capacity and the RMS read noise
*3 Dark current depends on cooling temperature
*4 In ultra-quiet scan
*5 Equivalent to USB 3.1 Gen 1 (SuperSpeed USB 5 Gbps)

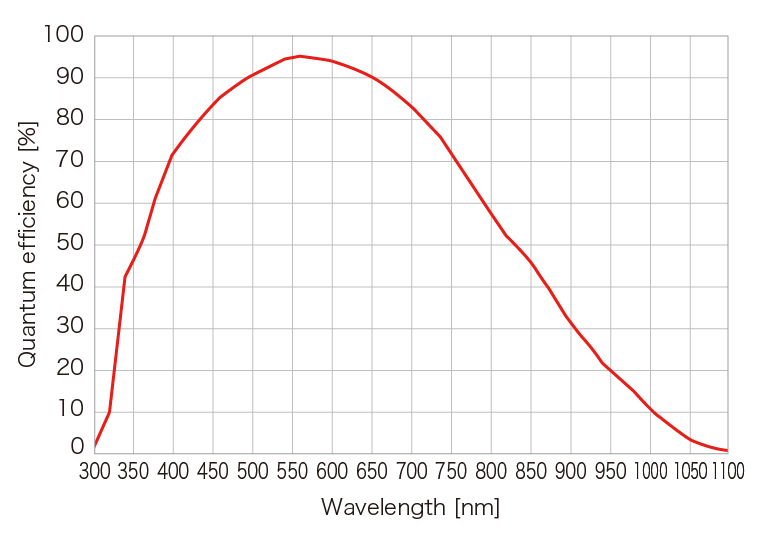

Spectral response

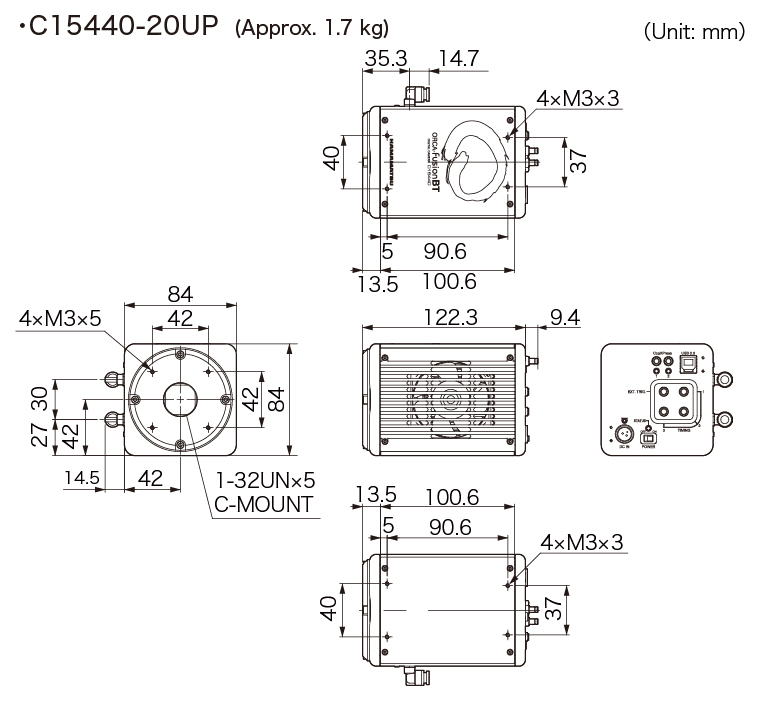

Dimensions
Instruction manual
