Scientific CMOS board level camera

C11440-62U

The C11440-62U is a compact and highly sensitive board level camera with a scientific CMOS image sensor. The camera has over 80 % quantum efficiency at 600 nm. The camera runs at 30 frames/s at full resolution and it can reach up to 25 655 frames/s (512 × 8 ROI). The C11440-62U can keep the sensor temperature constant and acquire a stable image by having a sensor temperature stabilization function built-in. The C11440-62U has low readout noise of 2.1 electrons (rms) at 30 frames/s. The compact (92 mm × 92 mm) and light weight design is ideal for integration into various measurement and analytical instruments. In addition to that the camera employs a USB 3.0 digital interface for convenience and compatibility.

Features

  • Sensor temperature stabilization function
  • Resolution: 4.0 megapixels (2040 × 2048)
  • Readout noise: 2.1 electrons (rms), 1.5 electrons (median)
  • Frame rate: 30 frames/s (Full resolution)
  • Quantum efficiency: 82 % (Peak QE)

Applications

  • Super-resolution microscope
  • Real time confocal microscope
  • Live cell imaging
  • Fluorescence time lapse imaging
  • DNA sequence
  • DNA microarray
  • X-ray I.I., X-ray scintillator readout

Software

Our software provides the interface to access all of our carefully engineered camera features, from simply setting exposure to orchestrating complex triggering for multidimensional experiments.

Specifications

Type number C11440-62U
Imaging device Scientific CMOS image sensor
Effective no. of pixels 2048 (H)×2048 (V)
Cell size 6.5 μm (H)×6.5 μm (V)
Effective area 13.312 mm (H)×13.312 mm (V)
Full well capacity 30 000 electrons (typ.)
Readout speed 30 frames/s (Full resolution) to 25 655 frames/s (512×8 ROI)
Readout noise 2.1 electrons (rms) typ., 1.5 electrons (median)typ. *2
Exposure time 1 ms to 30 s (Internal trigger mode at full resolution)*3
Dynamic range 20 000:1 typ.*1
Sub-array Yes
Binning 2×2, 4×4 *4
External trigger mode Edge trigger, Level trigger, Synchronous readout trigger, Start trigger, Global reset edge trigger, Global reset level trigger
Trigger output Programmable timing outputs, Low output, High output, Trigger ready output, Global exposure timing output
Interface USB 3.0
A/D converter 16 bit
Lens mount C-mount
Power supply DC+12 V
Power consumption Approx. 15 W
Ambient operating temperature 0 ℃ to +40 ℃
Ambient storage temperature -10 ℃ to +50 ℃
Ambient operating humidity 30% to 80 % (with no condensation)
Ambient storage humidity 90 % max. (with no condensation)
*1 Calculated from the ratio of the full well capacity and the average readout noise.
*2 Value of the sensor temperature 27 °C at 33 ms exposure.
*3 When exposure time is longer than 100 ms, white spots would be visible and image quality would be degraded.
*4 Digital binning processing in the camera.

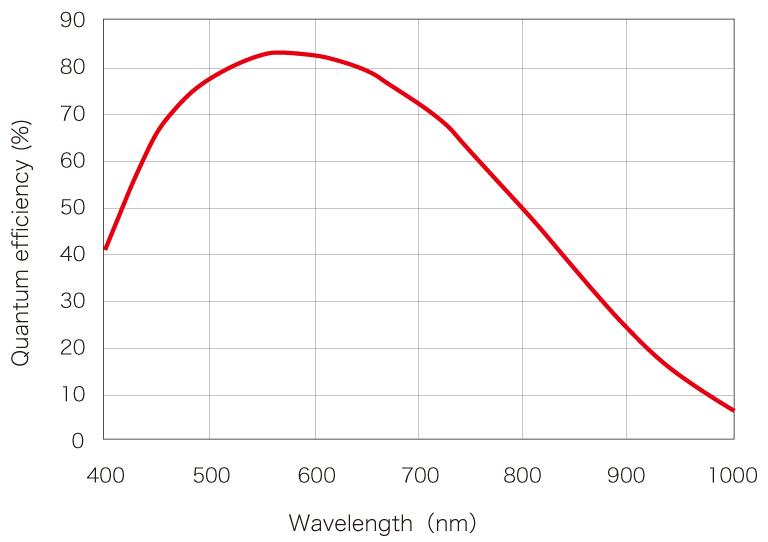

Spectral response

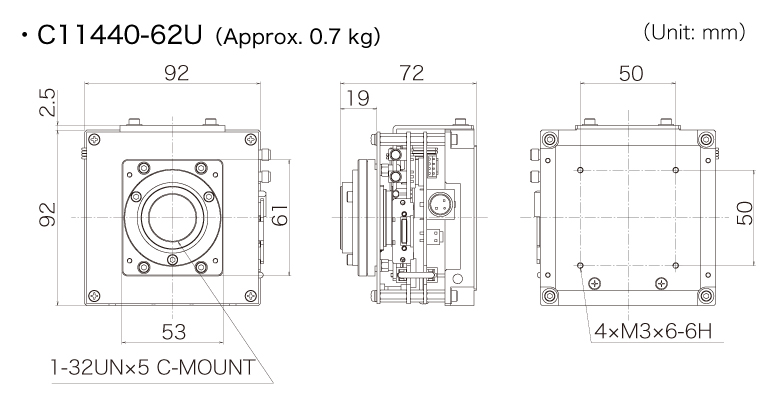

Dimensions
