Scientific CMOS board level camera


The C11440-52U30 is a compact and highly sensitive board level camera with a scientific CMOS sensor. The camera has over 80 % quantum efficiency. The camera runs at 30 frames/s at full resolution and it can reach up to 25 655 frames/s (512 × 8 ROI). This enhanced QE means that you have a possibility of detecting the faintest of signals. Or, for moderately dim samples, that the ideal image is achievable with shorter exposure times.
The C11440-52U30 has low camera noise of 2.3 electrons (rms) at 30 frames/s. The compact (90 mm × 90 mm) and light weight design is idea for integration into various measurement and analytical instruments. In addition to that the camera employs a USB 3.0 digital interface for convenience and compatibility.


  • Resolution: 4.0 megapixels
  • Readout noise: 2.3 electrons (rms), 1.6 electrons (median)
  • Frame rate: 30 frames/s (2048 × 2048)
  • Quantum efficiency: 82 % (Peak QE)


  • DNA sequence
  • Gene expression
  • Imaging cytometry
  • High content screening
  • Live cell imaging
  • Genomic and proteomic analysis and diagnostics
  • X-ray I.I., X-ray scintillator readout


Our software provides the interface to access all of our carefully engineered camera features, from simply setting exposure to orchestrating complex triggering for multidimensional experiments.


Type number C11440-52U30
Imaging device Scientific CMOS image sensor
Effective no. of pixels 2048 (H)×2048 (V)
Effective area 13.312 mm (H)×13.312 mm (V)
Full well capacity 30 000 electrons (typ.)
Readout speed 30 frames/s (Full resolution) to 25 655 frames/s (512×8 ROI)
Readout noise 2.3 electrons (rms) typ., 1.6 electrons (median)typ. *2
Exposure time 1 ms to 30 s (Internal trigger mode, Full resolution)*3
Dynamic range 18 000:1 typ.*1
Sub-array Yes
Binning 2×2, 4×4*4
External trigger mode Edge trigger, Level trigger, Synchronous readout trigger, Start trigger, Global reset edge trigger, Global reset level trigger
Trigger output 3 programmable timing outputs, Low output, High output, Trigger ready output, Global exposure timing output
Interface USB 3.0
Connector USB 3.0 microB type
A/D converter 16 bit
Lens mount C-mount
Power supply DC+12 V
Power consumption Approx. 9 W
Ambient operating temperature 0 ℃ to +40 ℃ *5
Ambient storage temperature -10 ℃ to +50 ℃
Ambient operating humidity 30% to 80 % (with no condensation)
Ambient storage humidity 90 % max. (with no condensation)
*1 Calculated from the ratio of the full well capacity and the average readout noise.
*2 Including dark current at 33 ms exposure.
*3 When exposure time is longer than 100 ms, white spots would be visible and image quality would be degraded.
*4 Digital binning processing in the camera
*5 When ambient operating temperature is higher than + 35 ˚C, white spots would be visible and image quality would be degraded.

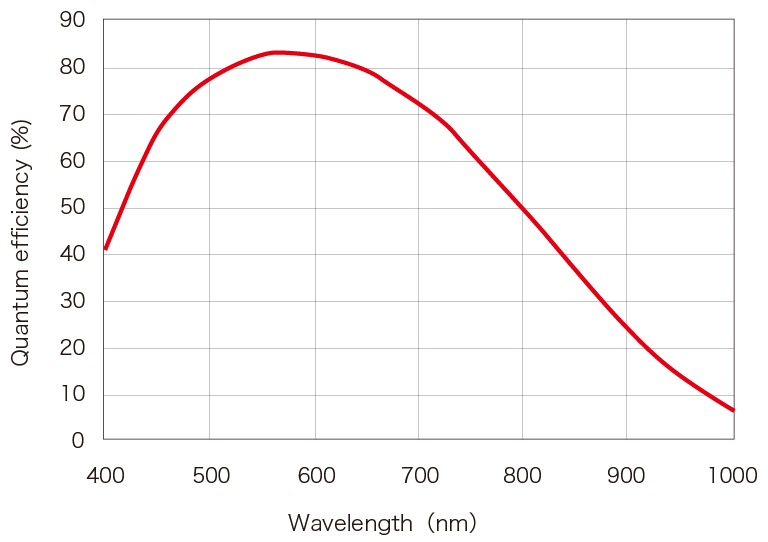

Spectral response
