Digital CMOS board level camera C13752-50U

The core of the C13752-50U camera is the scientific image sensor, an advanced CMOS detector that simultaneously achieves high resolution, fast readout speeds and low noise. With its small size, board-level design and simple, low-cost integration using USB 3.0, the C13752-50U is the ideal camera for OEM scientific imaging.
It is available to offer customization following your request. Please contact us for details.

Catalog 748 KB/PDF

Features
Applications
Software
Specifications

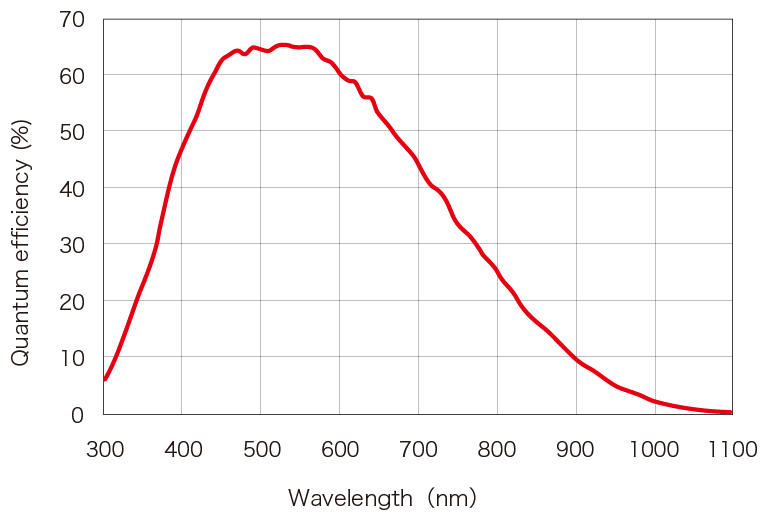

Spectral response

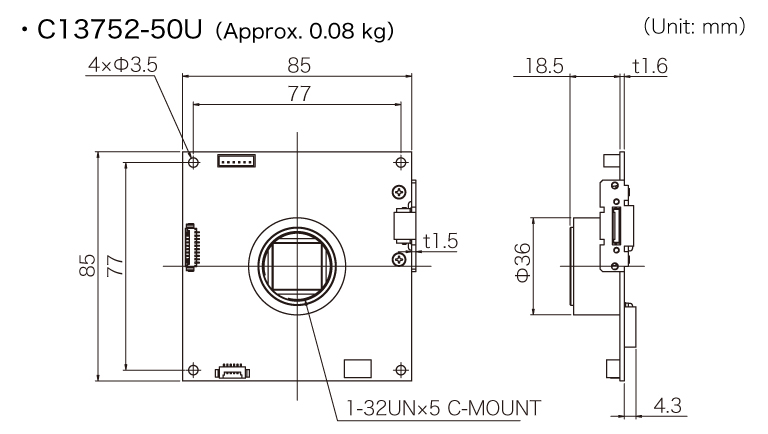

Dimensions
Related information

Features

Resolution: 3.0 megapixels (2048 × 1544)
Readout noise: 2.3 electrons (typ.)
Frame rate: 65 frames/s (Full resolution)
Global shutter

Applications

Fluorescence imaging
DNA sequencing
CTC detection
X-ray I.I. readout
X-ray CT

Software

Our software provides the interface to access all of our carefully engineered camera features, from simply setting exposure to orchestrating complex triggering for multidimensional experiments.

Specifications

Type number	C13752-50U
Imaging device	CMOS image sensor
Effective no. of pixels	2048 (H) × 1544 (V)
Cell size	3.45 μm (H) × 3.45 μm (V)
Effective area	7.06 mm (H) × 5.32 mm (V)
Full well capacity	10 500 electrons (typ.)
Readout speed	65 frames/s (Full resolution) 206 frames/s (2×2 Binning) 3981 frames/s (2×2 Binning, 4 Line Sub-array)
Readout noise	2.3 electrons (rms) typ. (Analog gain 1×)
Exposure time	19.70 μs to 1 s (Internal trigger mode) 19.70 μs to 1 s (External trigger mode: Edge trigger, Start trigger) 1 ms to 1 s (External trigger mode: Level trigger, Synchronous readout trigger)
Dynamic range	4565 : 1 typ.^*1
Analog gain	1× to 15.8× (240 steps)
Sub-array	Yes
Binning	2 × 2 ^*2
External trigger mode	Edge trigger, Level trigger Synchronous readout trigger, Start trigger
Trigger delay function	0 s to 10 s in 1 μs steps
Trigger output	Programmable timing outputs Trigger ready output Global exposure timing output Low output, High output
Interface	USB 3.0
Connector	USB 3.0 microB type
A/D converter	12 bit
Lens mount	C-mount
Power supply	Bus Power/DC+8 V to DC+30 V
Power consumption	Approx. 4.5 W
Ambient operating temperature	0 ˚C to + 40 ˚C
Ambient storage temperature	- 10 ˚C to + 50 ˚C
Ambient operating humidity	30 % to 80 % (with no condensation)
Ambient storage humidity	90 % max. (with no condensation)

*1: Calculated from the ratio of the full well capacity and the readout noise.
*2: Vertical 2 pixels are added inside the CMOS image sensor, and horizontal 2 pixels are added digitally inside in the camera.
