ORCA-Halo sCMOS camera
C17440-20U
The ORCA-Halo is an entry-level camera with a back-illuminated sCMOS sensor. Although it is an entry-level model, it offers high sensitivity and resolution, as well as a wide field of view and low readout noise. This camera can be used for a wide range of applications and is designed for those who want to obtain high performance easily and integrate it into their equipment.
ORCA is a registered trademark of Hamamatsu Photonics K.K. (China, EU, France, Germany, Japan, UK, USA).
Features
High QE
By adopting a back-illuminated sensor, we have achieved a high quantum efficiency of 86% (Peak QE). This contributes to the improvement of the S/N ratio.

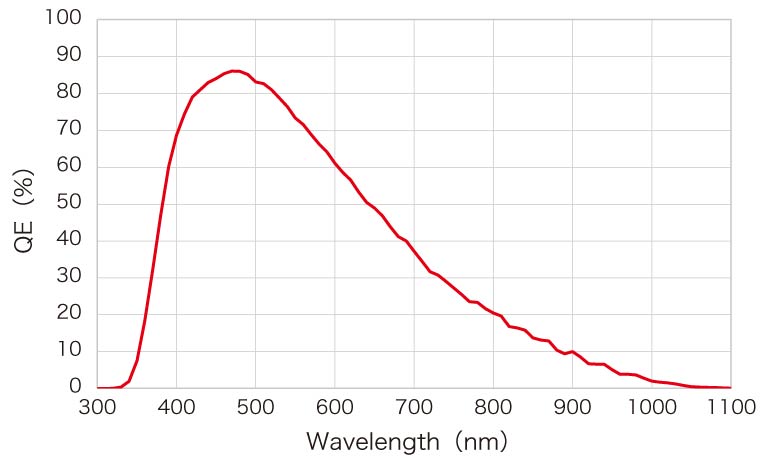

Spectral response
Low readout noise
ORCA-Halo offers a wide range of settings to adjust readout noise according to the sample.
Typical readout noise
| Camera setting | RMS ［electrons］ |
Median ［electrons］ |
|---|---|---|
| 16 bit standard/Analog gain ×1*1 | 1.6 | 1.2 |
| 16 bit standard/Analog gain ×8 | 1.3 | 0.9 |
*1 Factory settings

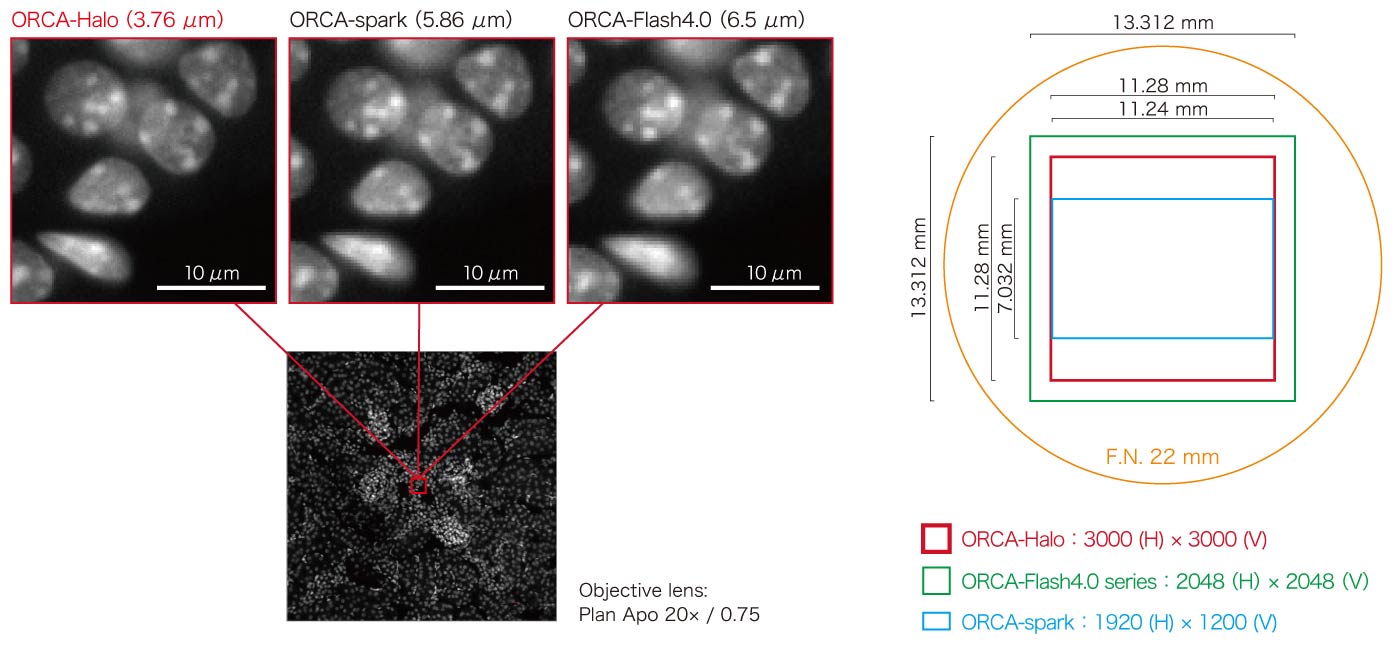

High resolution & wide field of view
ORCA-Halo features a sensor with a pixel size of 3.76 μm, which is one of the smallest pixel sizes among our sCMOS cameras. Additionally, it has a high resolution of 3000 pixels × 3000 pixels, allowing for the capture of clear and detailed images.

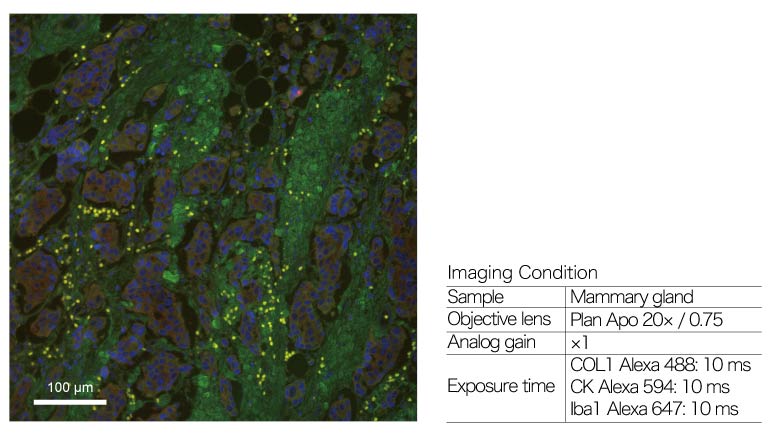

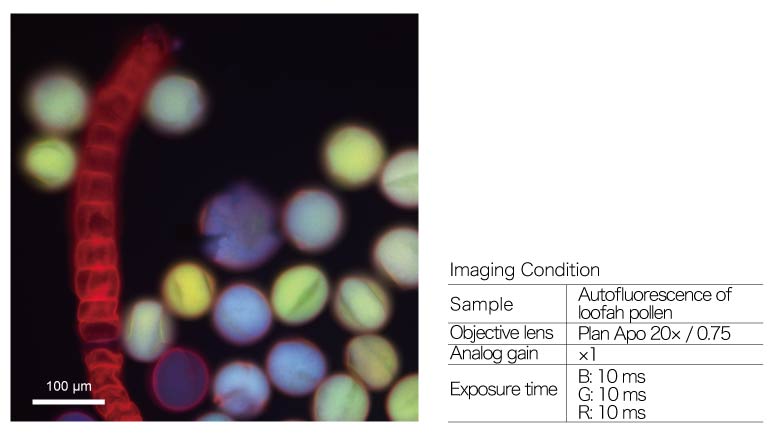

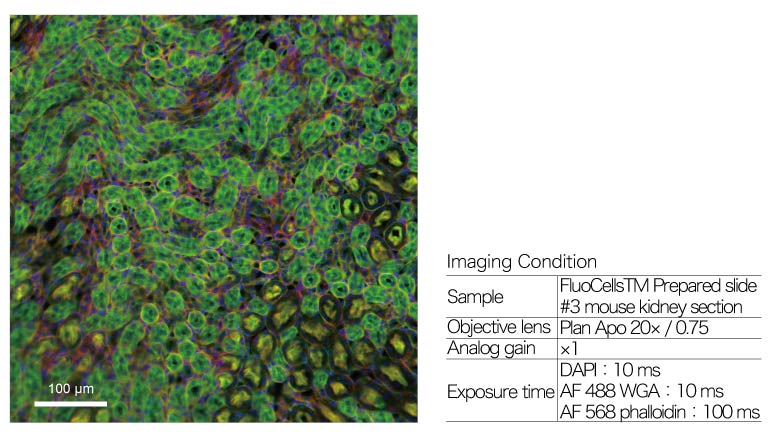

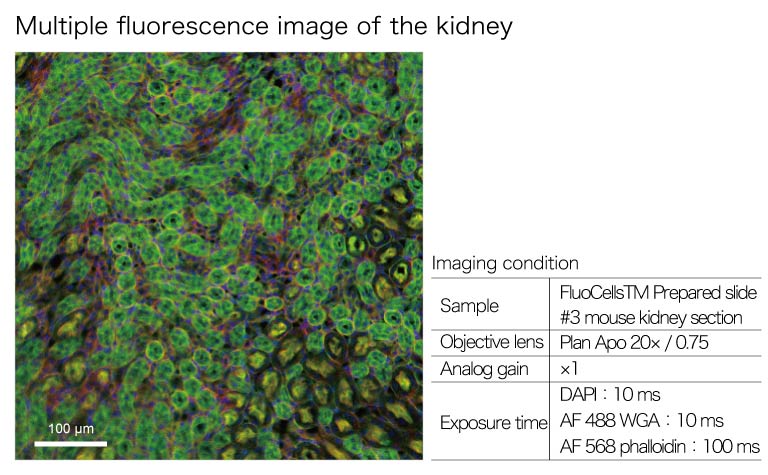

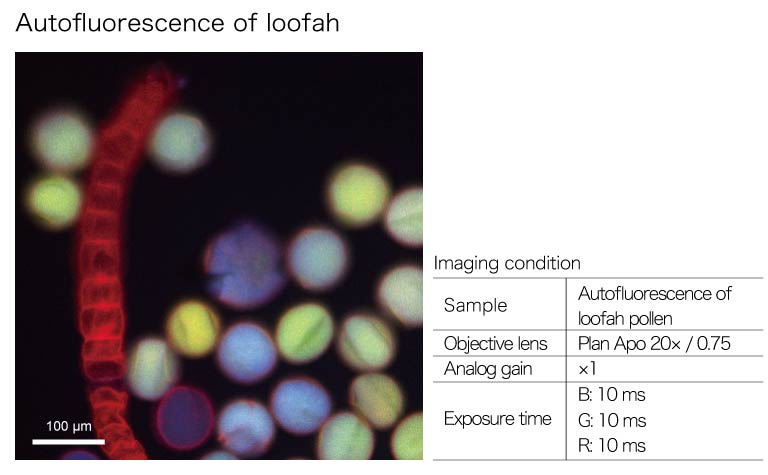

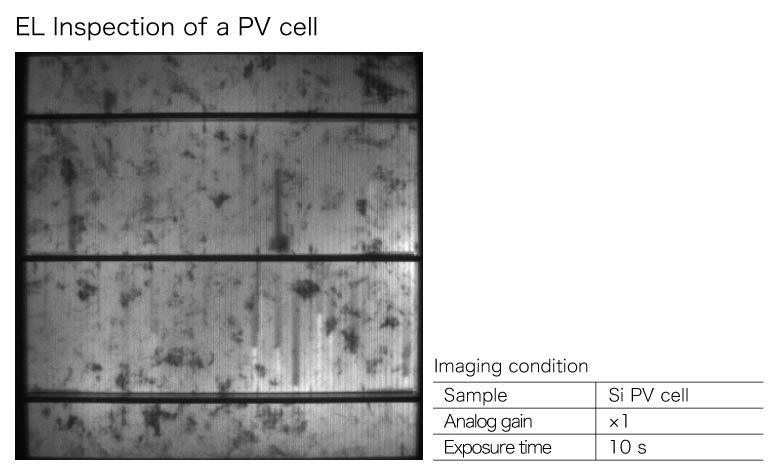

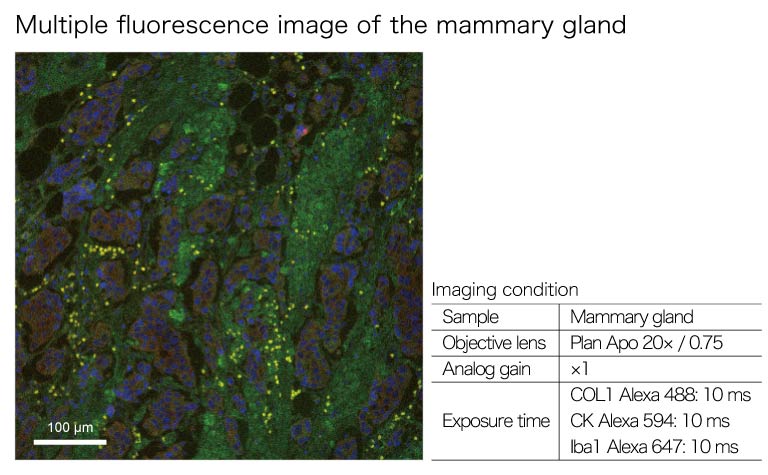

Measurement Examples
Software
Our software provides the interface to access all of our carefully engineered camera features, from simply setting exposure to orchestrating complex triggering for multidimensional experiments.
Specifications

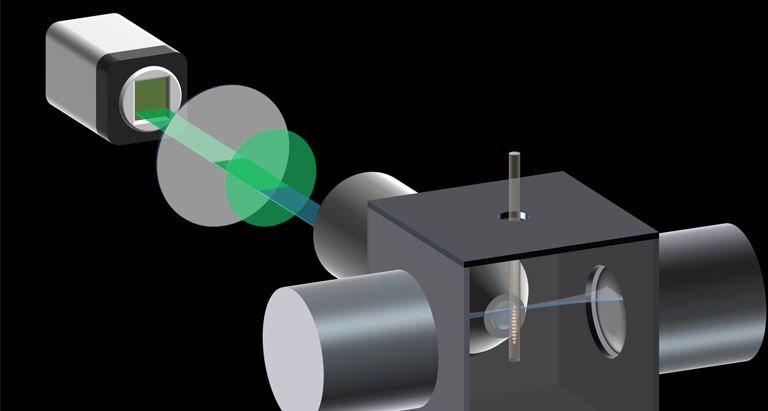

| Product number | C17440-20U | |
|---|---|---|
| Imaging device | Scientific CMOS sensor | |
| Effective number of pixels | 3000 (H) × 3000 (V) | |
| Pixel size | 3.76 μm × 3.76 μm | |
| Effective area | 11.280 mm × 11.280 mm | |
| Quantum efficiency (Typ.) | 86 %（peak QE） | |
| Full well capacity (Typ.) | 16 bit high / Analog gain ×1 | 49 100 electrons |
| 16 bit standard / Analog gain ×1*1 | 16 000 electrons | |
| 16 bit standard / Analog gain ×8 | 1950 electrons | |
| Read out noise (Typ.) | 16 bit high / Analog gain ×1 | 4.1 electrons (rms), 3.4 electrons (median) |
| 16 bit standard / Analog gain ×1*1 | 1.6 electrons (rms), 1.2 electrons (median) | |
| 16 bit standard / Analog gain ×8 | 1.3 electrons (rms), 0.9 electrons (median) | |
| 12 bit high / Analog gain ×1 | 7.4 electrons (rms), 7.2 electrons (median) | |
| 12 bit standard / Analog gain ×1 | 2.6 electrons (rms), 2.4 electrons (median) | |
| 12 bit standard / Analog gain ×8 | 1.6 electrons (rms), 1.2 electrons (median) | |
| Dynamic range (Typ.)*2 | 16 bit high / Analog gain ×1 | 12 000：1 (rms), 14 000：1 (median) |
| 16 bit standard / Analog gain ×1*1 | 10 000：1 (rms), 13 000：1 (median) | |
| 16 bit standard / Analog gain ×8 | 1500：1 (rms), 2200：1 (median) | |
| Sensor mode | Area readout / Lightsheet readout | |
| Cooling method (Peltier cooling) | Forced-air cooled (Ambient temperature: +25 ºC), Water cooled (Ambient temperature, Water temperature: +25 ºC) | |
| Sensor temperature | +10 ℃ | |
| Dark current (Typ.) | 0.03 electrons/pixels/s | |
| Readout speed | 16 bit：18.2 frame/s | |
| 12 bit：24.3 frame/s | ||
| Exposure time | 16 bit：170.7 μs to 10 s | |
| 12 bit：41.3 μs to 10 s | ||
| External trigger function | Area readout mode | Edge trigger / Global reset edge trigger / Level trigger / Global reset level trigger / Sync readout trigger /start trigger |
| Lightsheet readout mode | Edge trigger / Start trigger | |
| External trigger signal | External input (SMA) | |
| External trigger level | TTL / 3.3 V LVCMOS level | |
| External trigger delay function | 0 μs ～ 10 s（1 μs step） | |
| External output signal | Global exposure timing output / Any-row exposure timing output / Trigger ready output / Programmable timing output / High output / Low output | |
| External output level | 3.3 V LVCMOS level | |
| Digital output | 16 bit, 12 bit | |
| Interface | USB 3.1 Gen1 | |
| Lens mount | C-mount | |
| Power supply | AC 100 V ～ AC 240 V 50 Hz/60 Hz 2.5 A | |
| Power consumption | 74 VA | |
| Ambient operating temperature | 0 ºC to + 40 ºC | |
| Ambient operating humidity | 30 ％ to 80 ％ (With no condensation) | |
| Ambient storage temperature | -10 ºC to + 50 ºC | |
| Ambient storage humidity | 90 % (With no condensation) | |
*1: Factory settings
*2: Calculated from the ratio of the full well capacity and readout noise

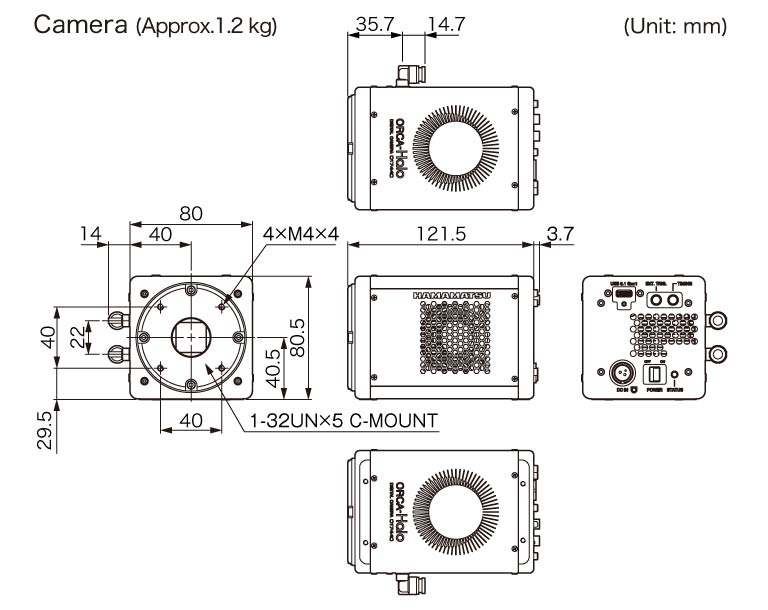

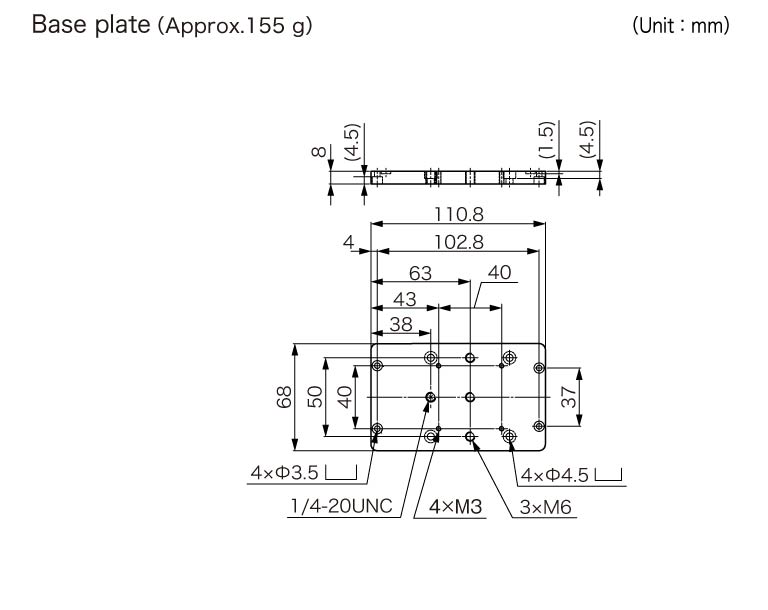

Dimensions
