Digital CMOS board level camera

C13949-50U

The core of the C13949-50U camera is the scientific image sensor, an advanced CMOS detector that simultaneously achieves high resolution, fast readout speeds and low noise. With its small size, board-level design and simple, low-cost integration using USB 3.0, the C13949-50U is the ideal camera for OEM scientific imaging.
It is available to offer customization following your request. Please contact us for details.

Features

  • Resolution: 12 megapixels (4096 × 3008)
  • Readout noise: 2.3 electrons (typ.)
  • Frame rate: 15 frames/s (Full resolution)
  • Global shutter

Applications

  • Fluorescence imaging
  • DNA sequencing
  • CTC detection
  • X-ray I.I. readout
  • X-ray CT

Software

Our software provides the interface to access all of our carefully engineered camera features, from simply setting exposure to orchestrating complex triggering for multidimensional experiments.

Specifications

Type number C13949-50U
Imaging device CMOS image sensor
Effective no. of pixels 4096 (H) × 3008 (V)
Cell size 3.45 μm (H) × 3.45 μm (V)
Effective area 14.13 mm (H) × 10.37 mm (V)
Full well capacity 10 500 electrons (typ.)
Readout speed 15 frames/s (Full resolution)
57 frames/s (2×2 Binning)
1540 frames/s (2×2 Binning, 4 Line Sub-array)
Readout noise 2.3 electrons (Analog gain 1×)
Exposure time 25.45 μs to 1 s (Internal mode)
25.45 μs to 1 s (External trigger mode: Edge trigger, Start trigger)
1 ms to 1 s (External trigger mode: Level trigger, Synchronous readout trigger)
Dynamic range 4565 : 1 typ.*1
Analog gain 1× to 15.8× (240 steps)
Sub-array Yes
Binning 2 × 2 *2
External trigger mode Edge trigger, Level trigger Synchronous readout trigger, Start trigger
Trigger delay function 0 s to 10 s in 1 μs steps
Trigger output Programmable timing outputs Trigger ready output Global exposure timing output Low output, High output
Interface USB 3.0
Connector USB 3.0 microB type
A/D converter 12 bit
Lens mount C-mount
Power supply DC+12 V
Power consumption Approx. 6.5 W
Ambient operating temperature 0 ˚C to + 40 ˚C
Ambient storage temperature - 10 ˚C to + 50 ˚C
Ambient operating humidity 30 % to 80 % (with no condensation)
Ambient storage humidity 90 % max. (with no condensation)
*1: Calculated from the ratio of the full well capacity and the readout noise.
*2: Vertical 2 pixels are added inside the CMOS image sensor, and horizontal 2 pixels are added digitally inside the camera.

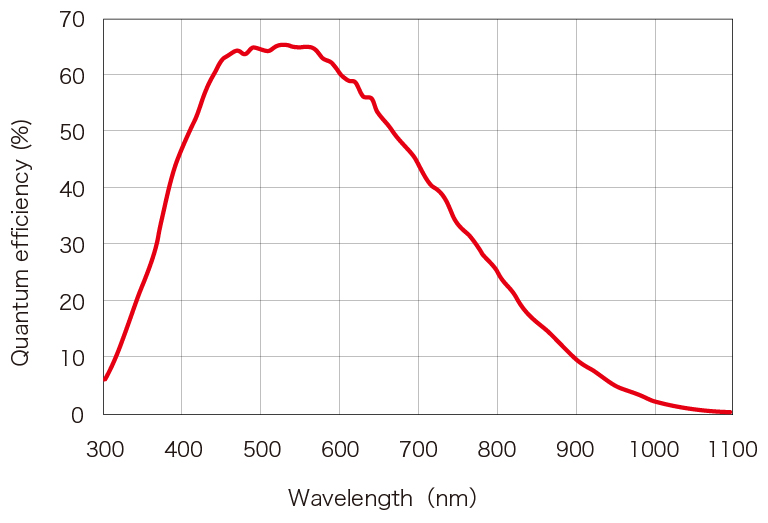

Spectral response

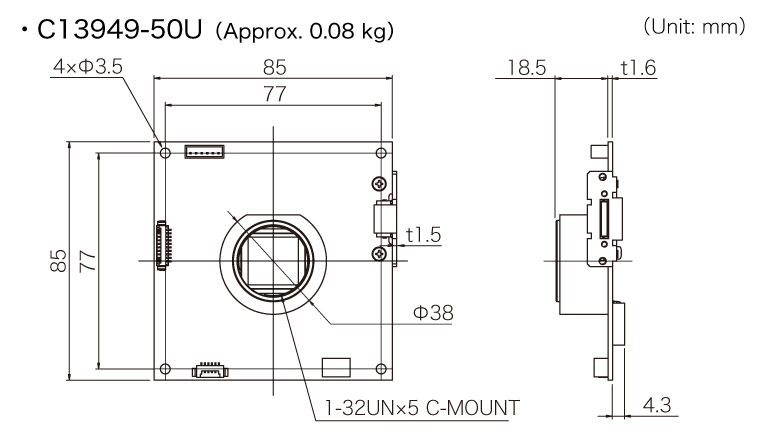

Dimensions
