Scientific CMOS board level camera
C11440-52U30
The C11440-52U30 is a compact and highly sensitive board level camera with a scientific CMOS sensor. The camera has over 80 % quantum efficiency. The camera runs at 30 frames/s at full resolution and it can reach up to 25 655 frames/s (512 × 8 ROI). This enhanced QE means that you have a possibility of detecting the faintest of signals. Or, for moderately dim samples, that the ideal image is achievable with shorter exposure times.
The C11440-52U30 has low camera noise of 2.3 electrons (rms) at 30 frames/s. The compact (90 mm × 90 mm) and light weight design is idea for integration into various measurement and analytical instruments. In addition to that the camera employs a USB 3.0 digital interface for convenience and compatibility.
Features
- Resolution: 4.0 megapixels
- Readout noise: 2.3 electrons (rms), 1.6 electrons (median)
- Frame rate: 30 frames/s (2048 × 2048)
- Quantum efficiency: 82 % (Peak QE)
Applications
- DNA sequence
- Gene expression
- Imaging cytometry
- High content screening
- Live cell imaging
- Genomic and proteomic analysis and diagnostics
- X-ray I.I., X-ray scintillator readout
Software
Our software provides the interface to access all of our carefully engineered camera features, from simply setting exposure to orchestrating complex triggering for multidimensional experiments.
Specifications
| Type number | C11440-52U30 |
|---|---|
| Imaging device | Scientific CMOS image sensor |
| Effective no. of pixels | 2048 (H)×2048 (V) |
| Effective area | 13.312 mm (H)×13.312 mm (V) |
| Full well capacity | 30 000 electrons (typ.) |
| Readout speed | 30 frames/s (Full resolution) to 25 655 frames/s (512×8 ROI) |
| Readout noise | 2.3 electrons (rms) typ., 1.6 electrons (median)typ. *2 |
| Exposure time | 1 ms to 30 s (Internal trigger mode, Full resolution)*3 |
| Dynamic range | 18 000:1 typ.*1 |
| Sub-array | Yes |
| Binning | 2×2, 4×4*4 |
| External trigger mode | Edge trigger, Level trigger, Synchronous readout trigger, Start trigger, Global reset edge trigger, Global reset level trigger |
| Trigger output | 3 programmable timing outputs, Low output, High output, Trigger ready output, Global exposure timing output |
| Interface | USB 3.0 |
| Connector | USB 3.0 microB type |
| A/D converter | 16 bit |
| Lens mount | C-mount |
| Power supply | DC+12 V |
| Power consumption | Approx. 9 W |
| Ambient operating temperature | 0 ℃ to +40 ℃ *5 |
| Ambient storage temperature | -10 ℃ to +50 ℃ |
| Ambient operating humidity | 30% to 80 % (with no condensation) |
| Ambient storage humidity | 90 % max. (with no condensation) |
*2 Including dark current at 33 ms exposure.
*3 When exposure time is longer than 100 ms, white spots would be visible and image quality would be degraded.
*4 Digital binning processing in the camera
*5 When ambient operating temperature is higher than + 35 ˚C, white spots would be visible and image quality would be degraded.

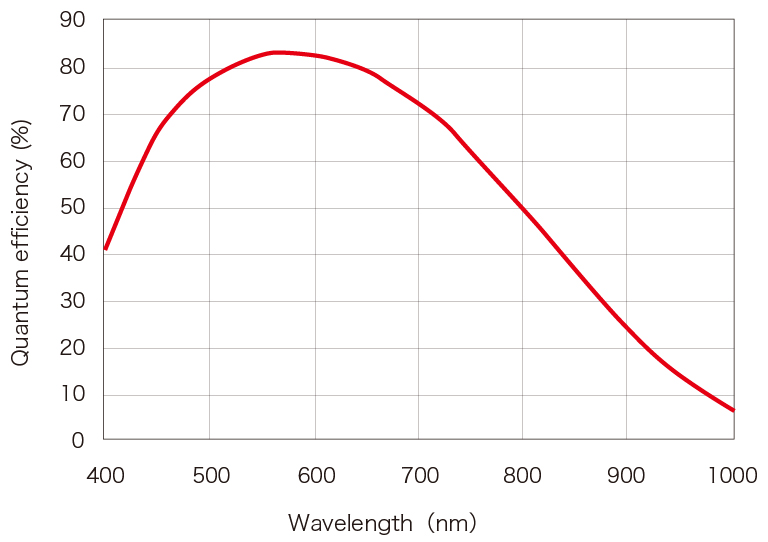

Spectral response

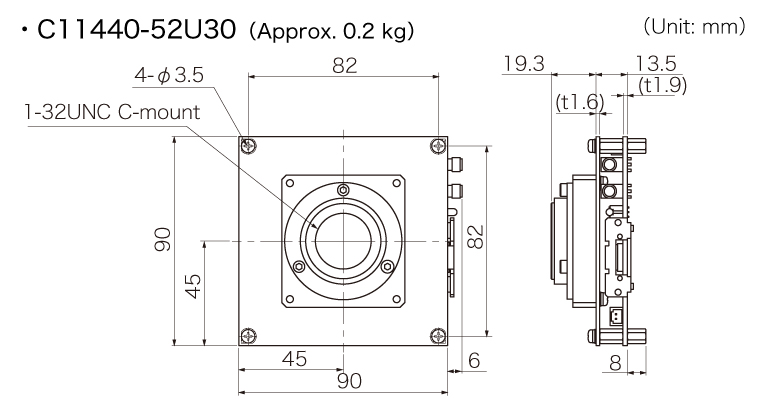

Dimensions
