X-ray sCMOS camera
The C12849-111U is a high resolution and high sensitivity X-ray sCMOS camera. (Scintillators:GOS(P43) 10 μm) The camera is suitable for micro object by achieving 33 lp/mm high resolution image. Also the product is compact that is suitable as embedded devices for Micro CT/Nano CT system.

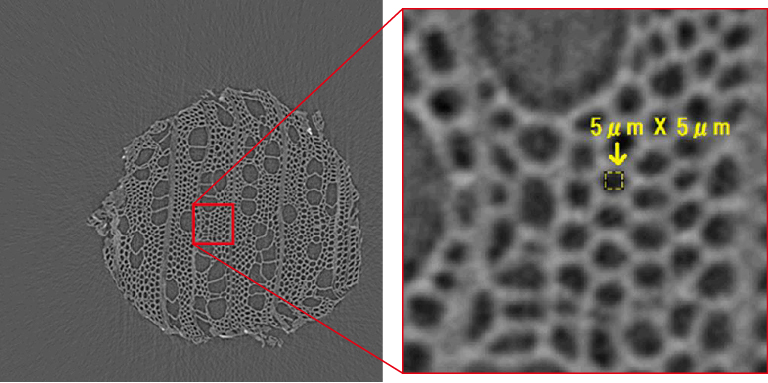

CT image of toothpick

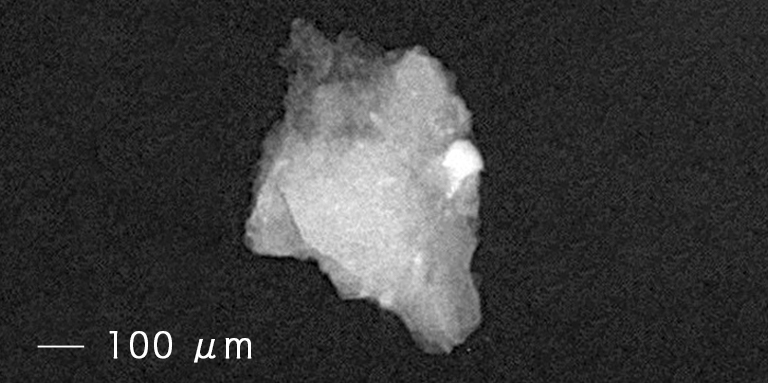

X-ray transmission image of Kilabo meteor
*Image courtesy of Dr.Uesugi , JAXA
|Imaging device||Scientific CMOS sensor|
|Effective no. of pixels||2048 (H)×2048 (V)|
|Cell size||6.5 μm (H)×6.5 μm (V)|
|Effective area||13.312 mm (H)×13.312 mm (V)|
|Scintillator||GOS(P43) 10 μm|
|Full well capacity||30 000 electrons (typ.)|
|Readout speed||30 frames/s to 25 655 frames/s|
|Readout noise||1.6 electrons (median), 2.3 electrons (rms) *2|
|Exposure time||1 ms to 30 s (1 ms to 100 ms recommended) *3|
|Dynamic range||18 000:1 typ.*4|
|External trigger mode||Edge trigger, Level trigger, Synchronous readout trigger, Start trigger|
|Trigger output||Programmable timing outputs, Global exposure timing output, Trigger ready output, Low output, High output|
|Maximum tube voltage||25 kV to 90 kV|
|A/D converter||16 bit|
|Power supply||AC 100 V to 240 V, 50 Hz/60 Hz|
|Power consumption||Approx. 35 VA|
|Ambient operating temperature||0 ℃ to +40 ℃ *6|
|Ambient storage temperature||-10 ℃ to +50 ℃|
|Ambient operating humidity||30 % to 70 % Forced-air cooled (with no condensation)|
|Ambient storage humidity||90 % max. (with no condensation)|
