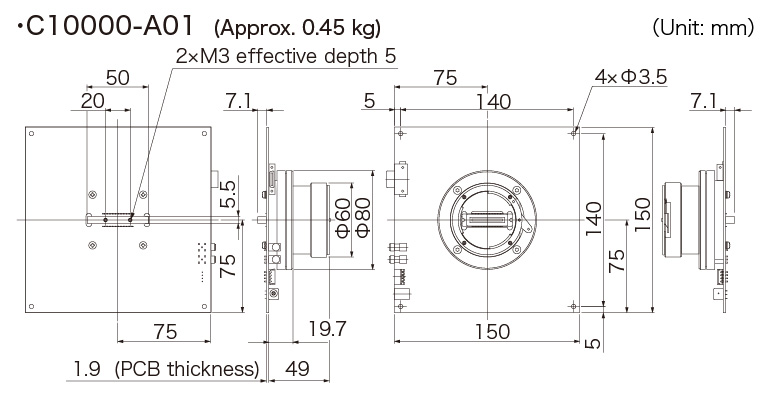

TDI board level camera


The C10000-A01 is a board-level camera mounted a TDI sensor. The camera is particularly useful for low light level scanning applications. Frame readout mode is available for easy focusing.


Our software provides the interface to access all of our carefully engineered camera features, from simply setting exposure to orchestrating complex triggering for multidimensional experiments.


Type number C10000-A01
Imaging device Back-thinned type
Effective number of pixels 2048 (H)×128 (V)
Cell size 12 μm (H)×12 μm (V)
Effective area 24.58 mm (H)×1.536 mm (V)
Readout mode TDI readout mode / Frame readout mode*1
TDI transfer direction Bidirectional transfer
TDI output channel 4 TAP (512×128)
Anti-blooming Yes (100 times of the full well capacity)
TDI pixel clock rate 30 MHz
TDI line rate 0.45 kHz to 50 kHz
TDI line rate control Internal setting by serial command*2 / External trigger
Full well capacity 80 000 electrons (typ.)
Readout noise 50 electrons rms (typ.)
Dynamic range 1600:1
Binning 2 x 2
Analog gain 1 time to 5 times (16 steps)
A/D converter 12 bit/8 bit*3
Interface Camera Link Base configuration
Camera control Serial control in Camera Link
Camera output clock 60 MHz
Camera output channel 2 TAP (1024 x 128)
Connector Mini-Camera Link (SDR) x 1
Lens mount F-mount
Power requirements DC+12 V*4
Power consumption Approx. 13.2 W
Ambient operating temperature 0 ℃ to +40 ℃
Ambient storage temperature -10 ℃ to +50 ℃
Ambient operating/storage humidity 90 % or less (with no condensation)
Ambient operating humidity 80 % or less (with no condensation)
*1: Frame readout mode is useful for easy focusing, but it is not suitable for measurement. Please consult with our sales office for details.
*2: Internal TDI line rate is set by 33 ns step.
*3: Selectable by serial command.
*4: AC adapter and external trigger cable are not included.

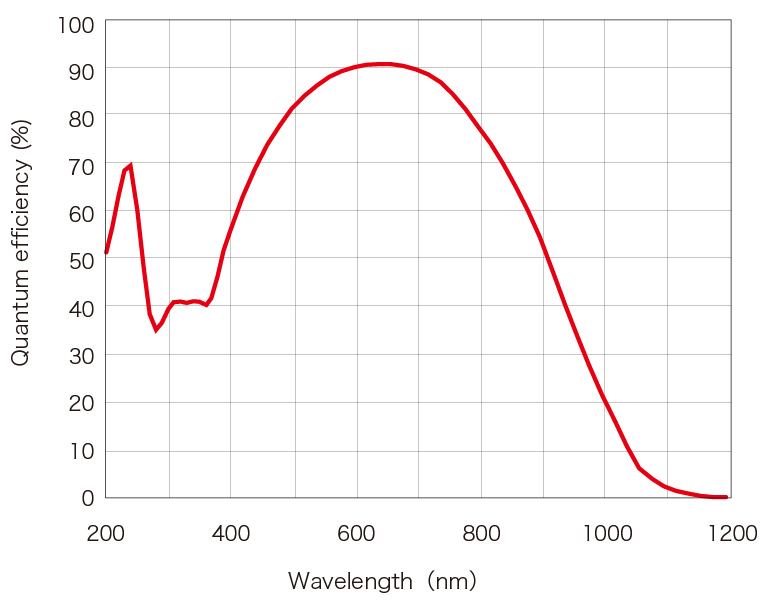

Spectral response


Contact us for more information.
