TDI camera


The C10000-801 TDI camera is useful for a wide range of imaging applications requiring high speed operation with high sensitivity simultaneously. Also, frame readout mode is available for easy focusing.


  • High resolution / high sensitivity (Horizontal spatial resolution with 128(V) TDI stages): 2048(H) × 128 (V), 4 TAP
  • Line rate up to 50 kHz
  • High speed imaging combined with high sensitivity and low noise
  • Great spectral response for UV-NIR with back-thinned CCD
  • 100× anti-blooming with lateral overflow drain
  • Dynamic range of 1600:1
  • 12 bit / 8 bit selectable A/D converter
  • Bidirectional scanning operation
  • Frame readout mode for easy focusing
  • Real time shading correction internal DSP


Our software provides the interface to access all of our carefully engineered camera features, from simply setting exposure to orchestrating complex triggering for multidimensional experiments.


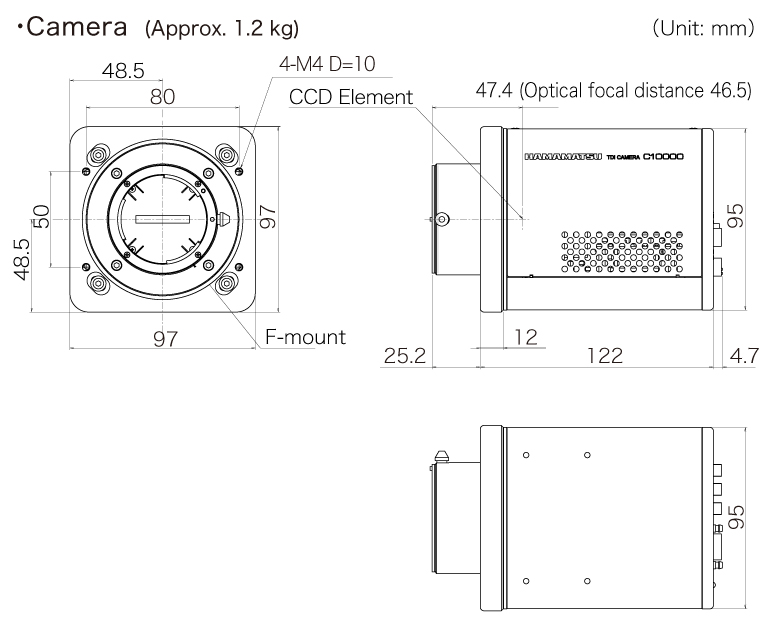

Type number C10000-801
Imaging device Back thinned type
Effective number of pixels 2048 (H)×128 (V)
Cell size 12 μm (H)×12 μm (V)
Effective area 24.58 mm (H)×1.536 mm (V)
Readout mode TDI readout mode / frame readout mode*1
TDI transfer direction Bidirectional transfer
TDI output channel 4 TAP (512×128)
Anti-blooming Yes (100 times of the full well capacity)
TDI pixel clock rate 30 MHz
TDI line rate 0.457 kHz to 50 kHz
TDI line rate control Internal setting by serial command*2 / External trigger
Full well capacity 80 000 electrons (typ.)
Readout noise 50 electrons rms (typ.)
Dynamic range 1600:1
Binning 2×2, 4×4
Analog gain 1 time to 5 times (16 steps)
A/D converter 12 bit/8 bit*3
Image processing Real-time shading correction / Back ground subtraction
Interface Camera Link base configuration
Camera control Serial control in Camera Link
Camera output clock 60 MHz
Camera output channel 2 TAP (1024×128)
Connector Mini-Camera Link (SDR)×1
Lens mount F-mount
Power requirements AC100 V to AC240 V, 50 Hz/60 Hz
Power consumption Approx. 55 VA
Ambient operating temperature 0 ℃ to +40 ℃
Ambient storage temperature -10 ℃ to +50 ℃
Ambient operating/storage humidity 90 % or less (with no condensation)
Ambient operating humidity 30 % to 70 % (with no condensation)
*1 Frame readout mode is useful for easy focusing, but it is not suitable for measurement. Please consult with our sales office for details.
*2 Internal TDI line rate is set by 33 ns step.
*3 Selectable by serial command.

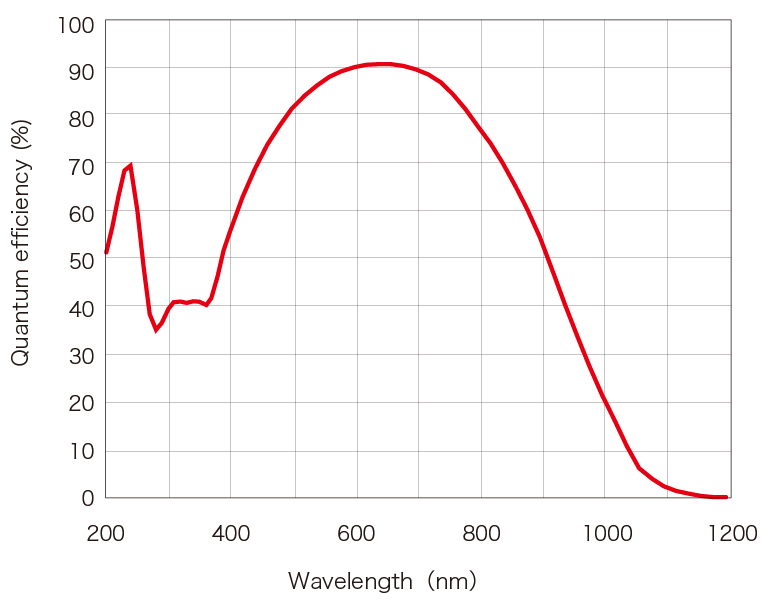

Spectral response
